EasySwitch Wireless Mains 4 Channel Receiver Kit

EasySwitch Wireless Four Channel Receiver Kit

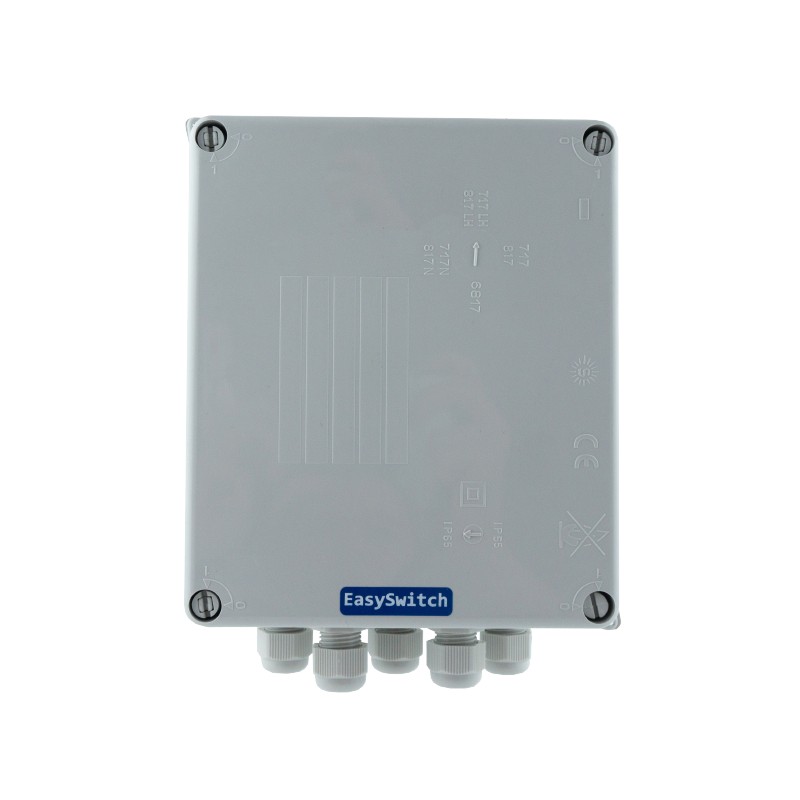

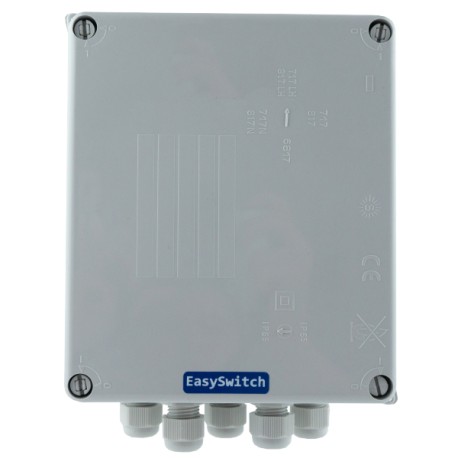

The ESR.4 mains voltage 4 channel receiver has four independent relays with each one capable of switching 230 volts 1KW resistive load or 100 watts LED to operate a variety of devices, this includes: electric motors, gates, doors, garden lighting and so much more. This versatile receiver has three modes to choose from: single switch, two-way switch and MIMIC. MIMIC is a momentary contact change and is usually used with the EasySwitch key fob and is ideal for electric door and gate control. The ESR.4 will work up to a distance of 200mtrs line of sight from any of the EasySwitch transmitters. One receiver can learn up to 16 transmitters and will remember the 'learn codes' even if the power is removed. The included key fob works in conjunction with receivers, PIR detectors and wall switch transmitters. It had a distance of 100mtrs clear line of sight.

Features:

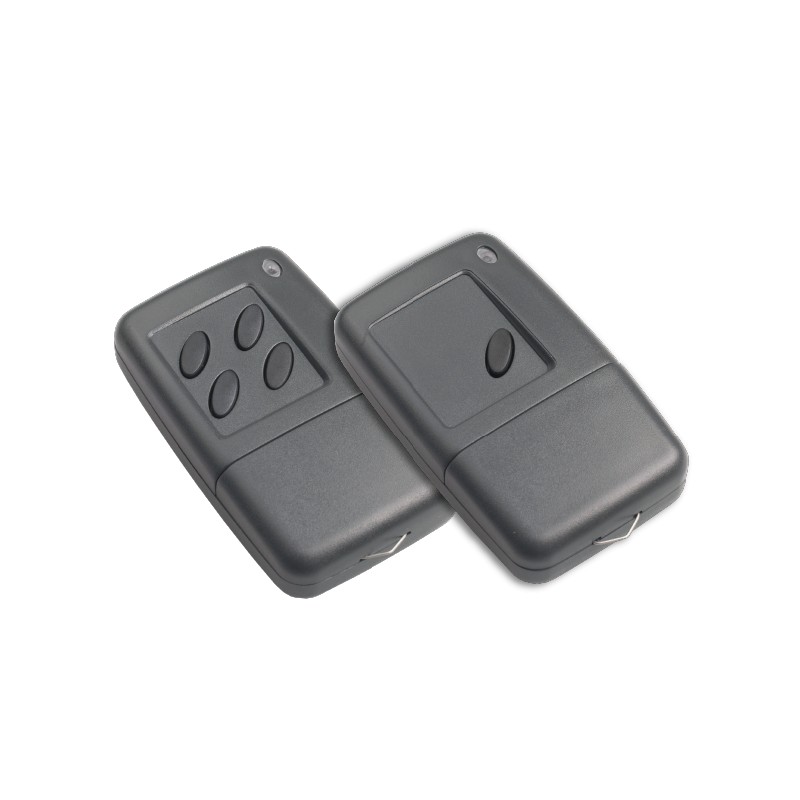

• Comes with 1 x 4 button key fob (ESF.4)
• Available for both commercial and domestic application
• 200m Wireless transmission range
• Robust enclosure to IP66 standard
• Learns up to 16 transmitters per channel
• Three selectable modes

Specification

• Power: 220-240 volts 50Mhz
• Idle Power Consumption: 1 watts (Relay & LED's off)
• Frequency: 433.92Mhz FSK
• Antenna 1/4 wave (supplied)
• Wireless Range: 200m line of sight
• Zone Outputs: 4 x 220-240 volt 50Hz switch outputs (not isolated)
• Relay Switch Capacity: 200 watts LED & inductive - 1000 watts all other types
• Temperature Range: -10°C to 60°C
• Weather Rating: IP66
• Dimensions: 145 x 165 x 84mm
• Licence Exempt: Yes
